Both get molded into the same plastic fittings — but they solve different problems, and picking the wrong one shows up months later as a warranty claim, not a quality-control rejection.
Brass inserts are the default choice for standard PPR, PEX, and PVC water fittings — cheaper, easier to machine, and reliable at knurl-molding. Stainless steel inserts (typically grade 303 or 316) are specified for corrosive fluids, high chloride exposure, food/pharma contact, or export markets where lead content in brass is a regulatory concern.
Why Brass Is the Default
Brass (typically C36000 free-cutting brass) is the industry-standard insert material because it machines fast, knurls cleanly, and has a thermal expansion rate close enough to PPR and PEX plastics that the mechanical bond holds up through repeated heating and cooling cycles. It is also significantly cheaper to produce at volume than stainless steel — a meaningful factor when a single fitting run can require tens of thousands of inserts. For most residential and light commercial plumbing, brass inserts covering standard water pressure and temperature ranges have decades of proven field performance.
When Stainless Steel Becomes the Right Call
Stainless steel inserts solve problems brass can’t. According to the material science overview of stainless steel, its corrosion resistance comes from a passive chromium-oxide layer that self-repairs when scratched — brass has no equivalent mechanism and will dezincify or pit under sustained aggressive water chemistry. Reach for stainless steel inserts when:
- Fluid chemistry is aggressive — high chloride content, low pH, or industrial chemical dosing lines where brass would corrode over time
- Lead exposure regulations apply — some export markets restrict lead content in components that contact potable water, and even “low-lead” brass alloys carry more residual lead than 300-series stainless
- Food, beverage, or pharmaceutical contact — 316 stainless is the standard reference material in food-grade equipment specifications
- Marine or coastal installation — airborne chloride accelerates brass dezincification even in fittings that never touch seawater directly

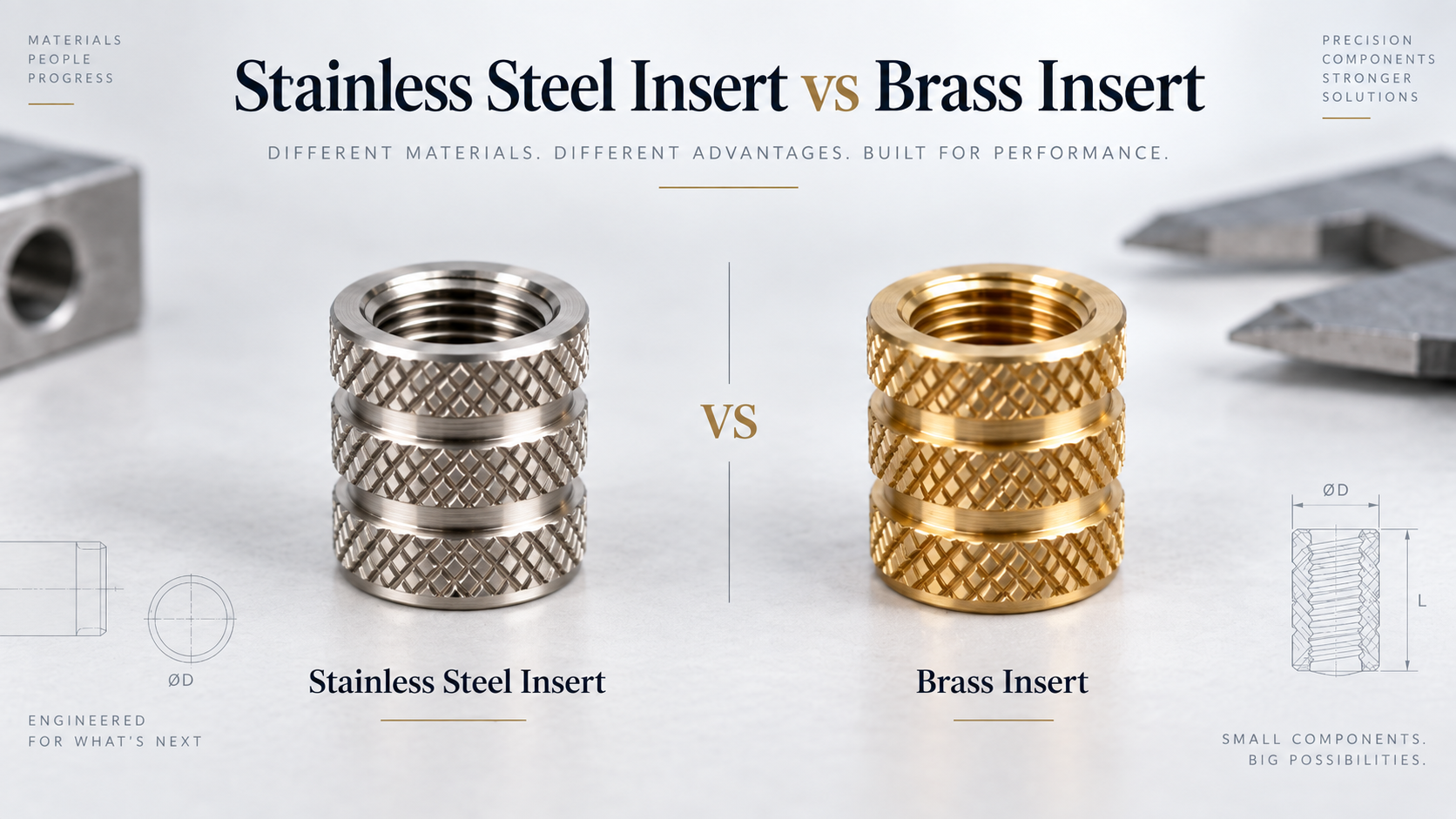

Side-by-Side Comparison
| Factor | Brass Insert | Stainless Steel Insert |
|---|---|---|
| Typical grade | C36000 free-cutting brass | 303 or 316 stainless |
| Relative cost | Lower | 30-60% higher, grade-dependent |
| Corrosion resistance | Good in standard potable water | Excellent, including chloride exposure |
| Machinability / knurl retention | Excellent | Moderate — requires tighter tooling control |
| Lead content concern | Present even in “low-lead” alloys | None |
| Best-fit application | Standard residential/commercial water fittings | Aggressive chemistry, marine, food/pharma, export markets with lead restrictions |
A practical rule of thumb: if you’re not sure whether you need stainless steel, you probably don’t. The extra cost only pays off when a specific fluid chemistry, regulation, or corrosion history justifies it — otherwise brass with a verified dezincification-resistant (DZR) grade covers the vast majority of use cases at lower cost.
Molding Process Differences Buyers Should Know
Stainless steel is harder and less thermally conductive than brass, which changes how it behaves during insert molding. Molders typically need to adjust injection pressure, cooling time, and knurl depth when switching from brass to stainless inserts, because the plastic cools against the metal surface at a different rate. If you’re sourcing stainless steel inserts for the first time, ask your supplier whether they’ve validated the knurl-to-plastic bond specifically for stainless — a knurl pattern optimized for brass does not automatically transfer. For background on how the insert-molding bond works in general, see Fenilo’s brass insert fittings explainer.
Frequently Asked Questions
Is stainless steel always safer for drinking water than brass?
Not automatically — brass inserts certified to NSF/ANSI 61 are fully approved for potable water. Stainless becomes the preferred choice mainly where lead content itself, not just safety certification, is the customer’s concern.
Can brass and stainless steel inserts be mixed in the same product line?
Yes. Many manufacturers offer both as variants of the same fitting, letting buyers choose per project based on water chemistry or export market requirements.
Does stainless steel cost more to injection-mold around, not just to buy?
Often yes — tooling wear and cycle-time adjustments can add modest per-unit cost beyond the raw material price difference, which is worth factoring into a full quote comparison.
What grade of stainless steel is most common for pipe fitting inserts?
Grade 303 for general use and 316 for higher corrosion resistance or food-contact requirements, per common industrial material specifications referenced in ASTM International’s stainless steel standards.
Fenilo produces knurled brass and 303/316 stainless steel inserts for OEM insert-molding programs, matched to your fluid chemistry, export market, and volume requirements. Send us your fitting drawing and target market and we’ll recommend the right grade.
Sources — Wikipedia: Stainless Steel · NSF International: What Is NSF/ANSI 61 · ASTM International: Stainless Steel Standards
