Three failure modes cause almost every field return on insert-molded fittings — and every one of them is traceable to a specific, checkable step earlier in sourcing or production.
Brass inserts fail in three main ways: pull-out (the insert separates from the surrounding plastic under axial load), leakage (fluid seeps along the metal-plastic interface rather than through a crack), and corrosion (dezincification or pitting that weakens the insert over years of water contact). Each has a distinct root cause and a distinct fix.
Failure Mode 1: Pull-Out

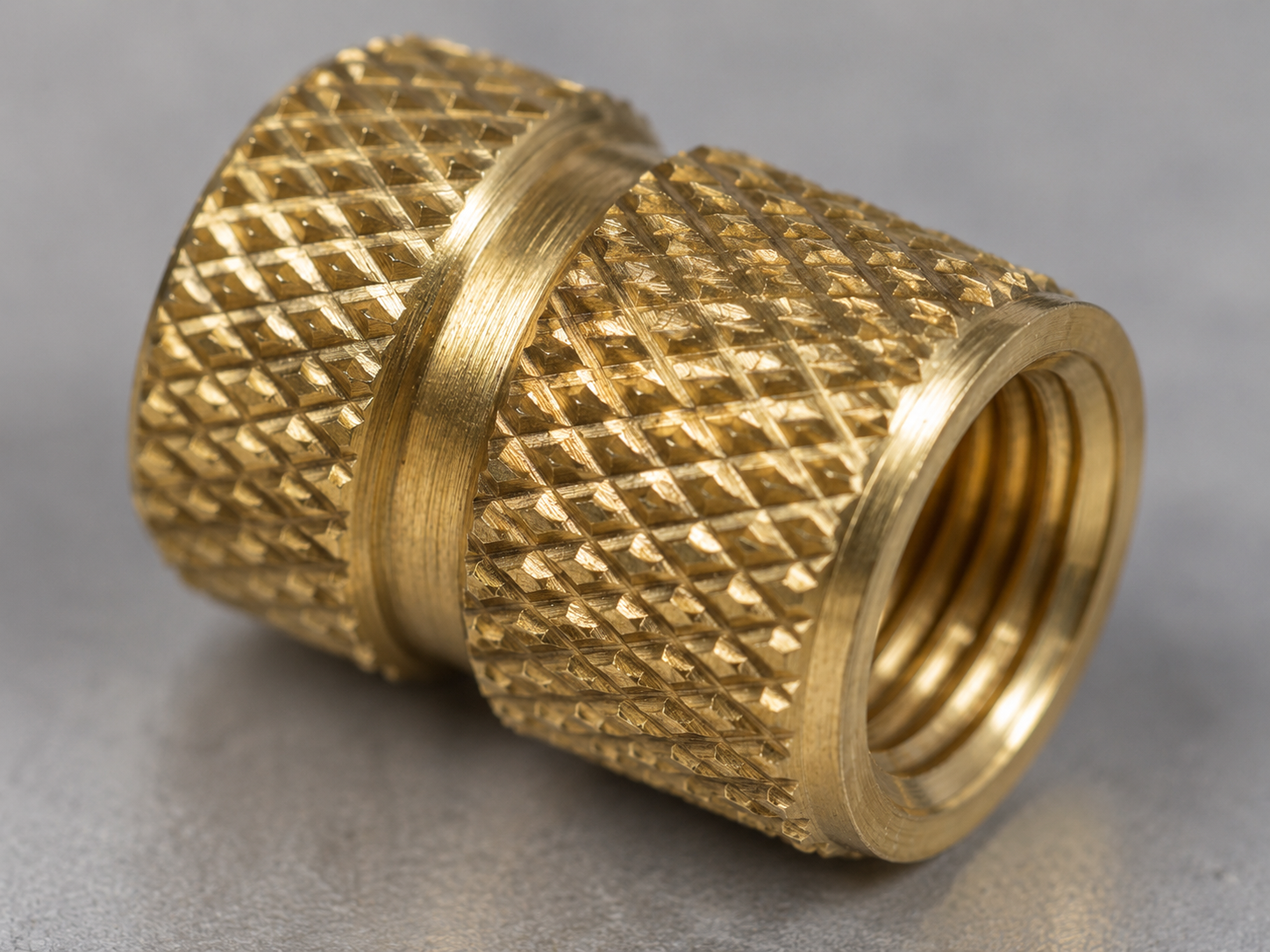

Pull-out happens when axial force — tightening a fitting, thermal expansion cycling, or repeated water hammer — exceeds the mechanical grip between the insert’s knurled surface and the surrounding plastic. It is almost always a knurl design or molding process issue rather than a material defect in the brass itself. Insufficient knurl depth, incomplete plastic fill into the knurl grooves, or a mismatch between insert preheat temperature and mold temperature are the most common root causes, each covered in more depth in Fenilo’s guide to how insert molding actually bonds metal to plastic.
Prevention: specify a validated pull-out force target (measured in kN) for your pressure class, request cross-section inspection evidence of full knurl fill, and confirm the supplier preheats inserts before placement rather than molding around cold metal.
Failure Mode 2: Leakage at the Interface
Interface leakage occurs when a microscopic gap forms between the insert and plastic — not a crack in either material, but a channel along the boundary where they meet. This is usually caused by differential thermal expansion: brass and most plastics expand and contract at different rates under temperature cycling, and repeated cycling can slowly work a gap open even in an insert that never physically pulls loose. It’s a slower, quieter failure than pull-out, often showing up as a weeping fitting months or years into service rather than an immediate rejection.
Prevention: undercut shoulder geometry (a wider step molded into the plastic behind the insert) resists this failure mode better than knurl alone, because it creates a mechanical seal independent of surface friction. Match insert and resin combinations that have a track record together rather than assuming any brass grade works with any plastic compound.
Failure Mode 3: Corrosion (Dezincification and Pitting)
Unlike pull-out and leakage, corrosion is a material-selection failure, not a molding-process failure. Brass is a copper-zinc alloy, and under certain water chemistries — particularly high chloride content, low pH, or stagnant water — zinc selectively leaches out of the alloy in a process called dezincification, leaving a porous, weakened copper structure behind. The internationally recognized test for this is ISO 6509, the standard dezincification resistance test method, which exposes a brass sample to a copper chloride solution and measures penetration depth. Brass that fails this test in your target water chemistry will eventually leak from the inside out, regardless of how well it was molded.
Corrosion failures are the hardest to catch at incoming inspection because a dezincification-prone insert looks and performs identically to a resistant one on day one. The only reliable defense is requiring DZR (dezincification-resistant) brass certified to ISO 6509 for any application with uncertain or aggressive water chemistry — see Fenilo’s comparison of brass vs plastic pipe fittings for where material choice matters most.
Failure Modes at a Glance
| Failure Mode | Root Cause | Detected By | Primary Fix |
|---|---|---|---|
| Pull-out | Knurl design or molding process | Pull-out force testing, cross-section fill check | Deeper/diamond knurl, validated preheat & mold temp |
| Interface leakage | Differential thermal expansion | Pressure-cycling / thermal-cycling test, field weeping | Undercut shoulder geometry, proven resin-insert pairing |
| Corrosion / dezincification | Alloy composition vs. water chemistry | ISO 6509 test, years-later field failure | Specify DZR-certified brass or switch to stainless steel |
Frequently Asked Questions
Can a pull-out failure be fixed after the fitting is already molded?
No — once an insert has pulled loose from the surrounding plastic, the joint is structurally compromised and the fitting should be replaced, not repaired.
How long does dezincification typically take to cause a visible failure?
It varies widely with water chemistry and can take anywhere from months to many years, which is exactly why it’s a specification-time decision rather than something incoming inspection can reliably catch.
Does a higher-priced brass alloy automatically resist dezincification?
Not automatically — resistance comes from specific alloy composition and manufacturing control verified by ISO 6509 testing, not from price alone, so always ask for test certification rather than assuming a premium price implies DZR performance.
Is stainless steel immune to all three failure modes?
Stainless steel effectively eliminates dezincification risk, but pull-out and interface leakage are still possible if knurl design and molding process aren’t correctly validated for the harder, less thermally conductive stainless surface.
Fenilo validates pull-out force, knurl fill, and DZR compliance (ISO 6509) on every brass and stainless steel insert program we run — and shares that test data with buyers as standard practice, not on request only. Tell us your fitting’s pressure class and target water chemistry and we’ll recommend the right alloy and knurl geometry.
